Tools

Prof. set Polijsten 80mm verlengstuk 30mm, Proxxon ..

Angle Stop with Scale for Proxxon KS230 ..

Drill Chuck For drill shank sizes 0.6 to 6mm. Max. speed 10,000rpm. Industrial quality with extra high speed accuracy. With 3/8" thread for MICROMOT bench drill TBM 220. NO 28 122       ..

Protection covers for the Proxxon Multimot series. With these protection covers you can work safely without flying metal or other materials. Depending on the tool you're using you can use the 22 or 38mm diameter protection cover. The cover is easy and fast to install and remove when necessary. ..

Professional gear chuck with MK 1  For the tailstock of the PD 250/E. Capacity up to 10mm. NO 24 020   ..

Quick change tool post - easy to use!For quick tool change and easy height adjustment. Includes 2 tool holder elements.NO 24 026..

Additional quick change tool holder (separately)Can be used with the PD 230/E and PD 250/E quick change tool post. NO 24 024 ..

Tool holder for rotary tools. For use on lathe machines. Made of steel with standard 20mm MICROMOT collar size. For precise clamping of rotary tool IBS/E or LBS/E in the tool post of the lathe. Shaft 8 x 10mm. Total length 65mm. NO 24 098   ..

Gear tooth chuck (10mm) with adapter Industrial quality, however not as accurate as the collets. With 10mm adapter which fits into the 10mm collet. Includes the chuck key. NO 24 110 ..

Drill chuck. Capacity 0.5 - 6.5mm. Industrial quality with high concentricity (allowed up to 10,000rpm). Complete with arbour B 10 x MK 0/short. For the tailstock of the FD 150/E.NO 24 152..

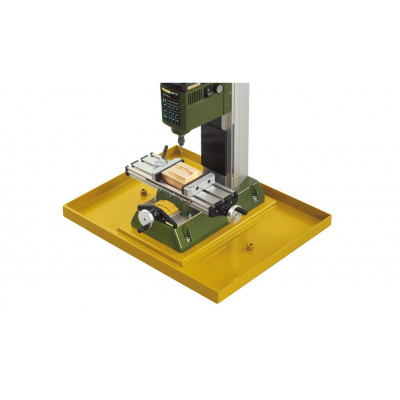

Chip collecting tray with splash guard for the FD 150/E Of 1.5mm thick sheet steel, powder-coated. Bevelled edges at the front and back enable easy cleaning. Pre-drilled mounting holes for the secure stability of the FD 150/E. L 400 x W 165 x H 140mm. The lathe depicted here is not included in th..

Fine feed for accurate adjustmentsQuick and easy to install. The clutch system enables feed via either the drill handle or the handwheel. The handwheel has 0.025 graduations and may be set to zero. 1 division = 0.05mm.NO 24 254..

Precision vice PM 60 Perfectly rectangular. To be placed sideways and on the end face. With matching nuts and screws for fixation in MICROMOT standard T-slots (12 x 6 x 5mm). Supplied in wooden box with sliding lid. Jaw width 60mm. Clamping capacity 42mm. Total length 100mm. NO 24 255   ..

Step clamps made of steelThe step clamps set is supplied with the KT 70, but can also be ordered separately. Set consists of 2 stepped blocks and clamps, T-slot nuts of the MICROMOT standard (11.5 x 11 x 4mm), bolts. This set also fits the mill/lathe systems PD 250/E and PD ..

Milled steel step clamps For MICROMOT standard T-slots (12 x 6 x 5mm). Two each step blocks and clamps with matching nuts and fixation screws. For work pieces up to a thickness of approx. 35mm. Neatly packed in wooden box with sliding lid. NO 24 257 ..

Precision steel vice PM 40Milled from steel for precision. Completely angular. Jaw width 46mm, clamping capacity 34mm. Total length 70mm. Especially suited for filigree and accurate working with the MICRO miller MF 70 or the MICRO compound table KT 70. Sliding blocks and fixing screws included...

Dividing head for MICRO miller MF 70 and MICRO compound table KT 70For machining circular work pieces, manufacturing off-set holes and milled out portions, milling key surfaces, four-sided, sixsided materials, etc. Absolute accurate division due to nonius at the base body. With reversed chuck jaws: ..

Edge finder setUsed for fast and accurate location of starting point of work pieces with respect to the machine spindle on milling machines. Size 6 x 6 x 50mm and 6 x 5 x 75mm. Comes in wooden box with sliding lid.NO 24 434..

MICRO compound table KT 70   Made of solid aluminium with surface treatment and fitted with adjustable dovetail gibs and three T-slots of the MICROMOT standard (12 x 6 x 5mm). Adjustable ruler eases workpiece positioning. Both handwheels have zero-resettable dials with graduations indicating 1..

Machine vice MS 4Die-cast zinc.With three machined sides. The slot fits the adjustable fence of the drill stand MB 140/S and bench drill TBM 220. Horizontal and vertical V-slots in jaw. Jaw width 50mm and height 10mm. Maximum clamping width 34mm.NO 28 132..

Blade guide, separately NO 28 187           ..

MICROMOT drill stand MB 200Head with dovetail guides can be tilted through 90° (scale ring available). Enables bevelled drilling and versatile milling operations.Geared rack and pinion feed with return spring allowing effortless and sensitive operation. Practical drill depth scale with adjustable li..

Precision vice FMS 75Made of die-cast zinc. Ball and socket: rotates in all directions (even downwards). 75mm jaws with protective covers (for delicate workpieces). Maximum clamping width 70mm and weight 1.6kg.NO 28 602..

Precision vice FMZ   Rotates in all directions.  Easily clamps to workbenches and tables of up to 60mm. Alternatively, use 2 standard screws to secure to the work surface. Ball and socket: rotates in all directions (even downwards). 75mm jaws with protective covers (for delicate workpieces)..

Universal holder UHZWith ball joint. To be rotated and swivelled in all directions.20mm collar for MICROMOT drilling and milling devices, such as FBS 240/E,FBS 12/EF, IBS/E, LBS/E, MICROMOT 50, 50/E and 50/EF. Made of die-cast ZINC. With clamp for qu..

MICROMOT flexible shafts with precision aluminium handle. Available with steel collets or quick-action chuck.MICROMOT Flexishaft 110/PDual ball-bearinged milled steel shaft with tool holder for MICROMOT steel collets. Ball-bearinged shaft end on machine. Highly flexible core (does not run hot when w..

MICROMOT flexible shafts with precision aluminium handle. Available with steel collets or quick-action chuck.     MICROMOT Flexishaft 110/P   Dual ball-bearinged milled steel shaft with tool holder for MICROMOT steel collets. Ball-bearinged shaft end on machine. Highly fle..

Footswitch FSFor all machines with a Euro plug (class 2 insulation) and maximum power absorption of 500W. Ideal for both portable and stationary machines. Housing of glass-fibre reinforced NYLON. The connecting cord (230V) is 250cm in length and the output cord 50cm. The transformer is connected to ..

MICROMOT extension cord.  300 cm.   For all 12V machines. Plug and wall-socket reverse polarity- protected.  NO 28 992       ..

Adapter for use of the MICRO screwdriver MIS 1 with BV 2000 for cutting threadsDue to the practical rocker switch for on/off/reverse and a rotational speed of 250rpm the MIS 1 is ideal for cutting threads: The thread cutter is precisely guided and ensures very precise and exact vertical female threa..
