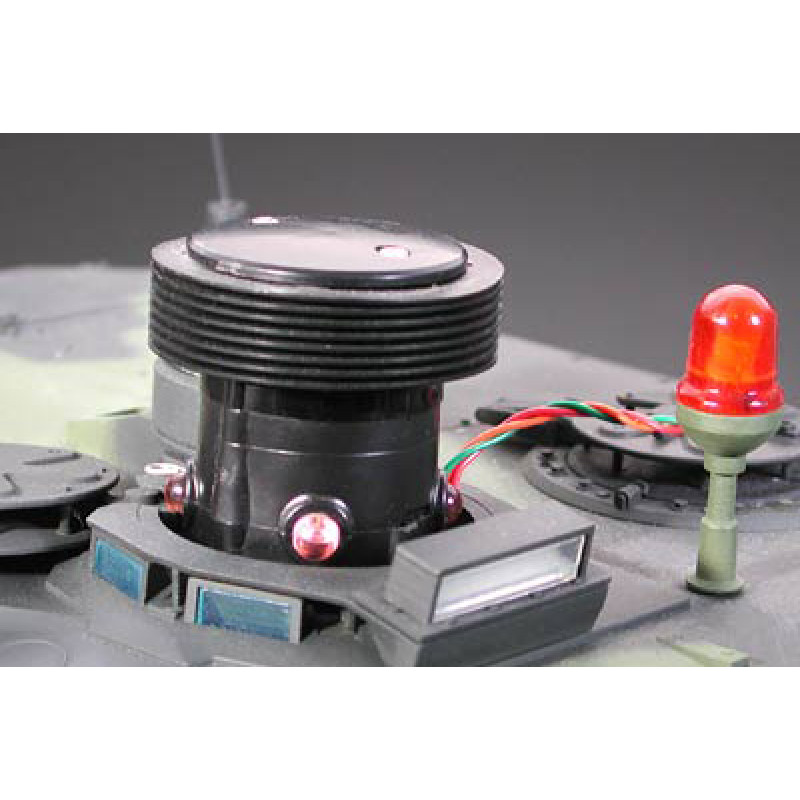

Tamiya is proud to release Battle System-a revolution in tank-to-tank fighting. This system incorporates infrared light and realistic sound, eliminating the difficulty in judging, often found with other tank-to-tank games. Furthermore, infrared light is totally harmless and prevents damage to details of the tank body. The system is comprised of the GFS (Gun Fire Simulator) Unit and the Infrared LED Unit, for the respective detection and emission of infrared beams. A wide range of sound effects and actions are reproduced with Battle System including: damage blast, engine trouble sound, loss of speed, blast reaction, limited operation state, and finally inoperative state. Battle System provides a maximum shooting range of 30m and can be easily installed to your tank even after assembly and painting. Battle System lets you bring out the true roar of your 1/16 RC Tank!
Note: Battle System is only usable with tanks equipped with Multifunction Unit. Operation requires the use of two or more tanks equipped with Battle System.
Personalize your Tank Combat!
Epoch-making Battle System lets you choose among three tank classes: light, medium, and heavy at the flick of a switch. Also, the number of blasts your tank can endure, the length of time between each firing-Battle System lets you set the conditions exactly as you wish. (See diagram below for more details.)
Taking a Hit:
You have just been hit by the enemy tank! You will hear the booming "damage blast" sound and feel your tank shake with the "blast reaction" effect. The GFS Unit will also flash to indicate the hit, and the sound and speed of your engine will slow. Also, directly after taking a hit, your tank gets "shaken up" and temporarily loses the ability to fire-you're down...but not out.
Your tank can only absorb so much punishment. After a certain number of blasts (this too can be adjusted), you will hear an "explosion" and the GFS Unit will flash intensely. Your tank will make two final lurches forward before the engine shuts down and all tank control is lost. NOW you're out...but...
|Heavy Tank Mode||Medium Tank Mode||Light Tank Mode|
|Between Firing Interval||9 sec.||5 sec.||3 sec.|
|1 hit taken||Speed: 50%||Speed: 50%||Speed: 50%|
|2 hits taken||"||"||Speed: 25%|
|3 hits taken||"||"||Destroyed|
|4 hits taken||"||Speed: 25%|
|5 hits taken||Speed: 25%||"|
|6 hits taken||"||Destroyed|
|7 hits taken||"|
|8 hits taken||"|
|9 hits taken||Destroyed|
Back from the Dead:
The good news is that after a short period of "down-time" (about 15sec), your tank will come back to life with the "battery engine start-up" sound. For a short time, your tank remains invulnerable to enemy fire, allowing for some evasive maneuvering before striking back at your foe.
|Recovery time||Invulnerability time|
|Heavy||15 sec.||10 sec.|
|Medium||15 sec.||12 sec.|
|Light||15 sec.||15 sec.|
Long 30m Shooting Distance!
