Product description

Powerful HV Savox servo with coreless motor for extreme speed and precision!

The Savox SV-1274MG is a high voltage digital servo with leading edge technology and high efficiency coreless motor. With 9kg/cm torque and 0.042 seconds speed at 7.4V, this servo delivers accurate and fast response with super high resolution. The aluminum center case provides improved motor cooling and total strength. Equipped with ball bearings and precision metal gears for optimal performance.

Features:

HV digital servo
High efficiency coreless motor
Torque: 9kg/cm @ 7.4V
Speed: 0.042s/60° @ 7.4V
Accurate and fast response
Super high resolution
Aluminum center case
Ball beared
Precision metal gears

Specifications:

Brand: Savox
Model: SV-1274MG
Torque: 9kg/cm @ 7.4V
Speed: 0.042s @ 7.4V
Weight: 61.0g

Technical Specifications:

Brand: Savox
Model: SV-1274MG
Type: HV Digital Servo
Servo Technology: Digital High Voltage
Input Voltage: 6.0V - 7.4V
Servo Size: Standard
Motor Type: Coreless Motor
Gears: Metal
Ball Beared: Yes
Case: Aluminum - Composite
Speed @ 7.4V: 0.042s/60°
Torque @ 7.4V: 9.0kg/cm
Dimensions: 40.3x20.2x38.5mm
Weight: 61.0g
Connector: JR
Servo Horn: 25T Spline

Contents:

1x Savox SV-1274MG Servo

Part No.: SV-1274MG

Specifications

Servo
Manufacturer	Savox
Model	SV-1274MG
Type	Standard
Controller	Digital - HV
Weight	61.0 g
Height	38.5 mm
Lenght	40.3 mm
Width	20.2 mm
Torque at 6.0V	?
Torque at 7.4V	9.0 kg/cm
Speed at 6.0V	?
Bearings	Ball Bearing
Speed at 7.4V	0.042 s
Gears	Metal
Voltage	6.0V, 7.4V
Connector	Graupner/JR
Motor	Coreless
Spline	25t

Other options

Quickview

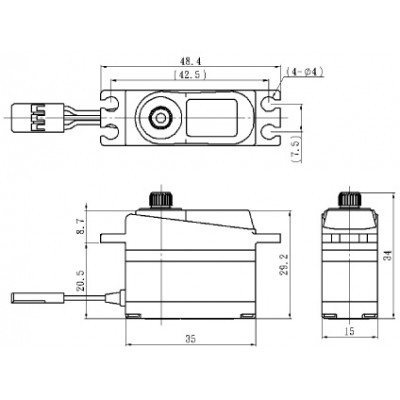

Savox SV-1257MG High Voltage Mini Servo (4kg)

Model: SV-1257MG

Savox SV-1257MG High Voltage Mini Servo (4kg)

Ultra fast HV Savox mini servo with steel gears for LiPo receiver batteries! The Savox SV-1257MG is a high voltage digital..

€59.95 Ex Tax:€49.55

Shipped today

Add to Wish List Compare this Product

Quickview

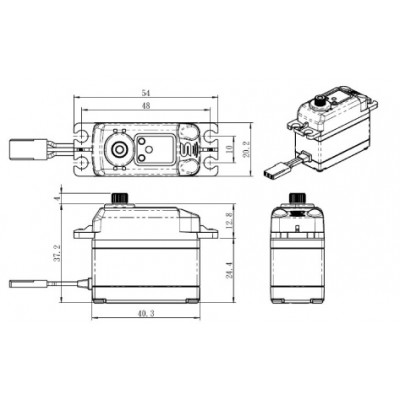

SAVOX SC-1268SG+ Digital HV Servo Steel Gear - 25kg
