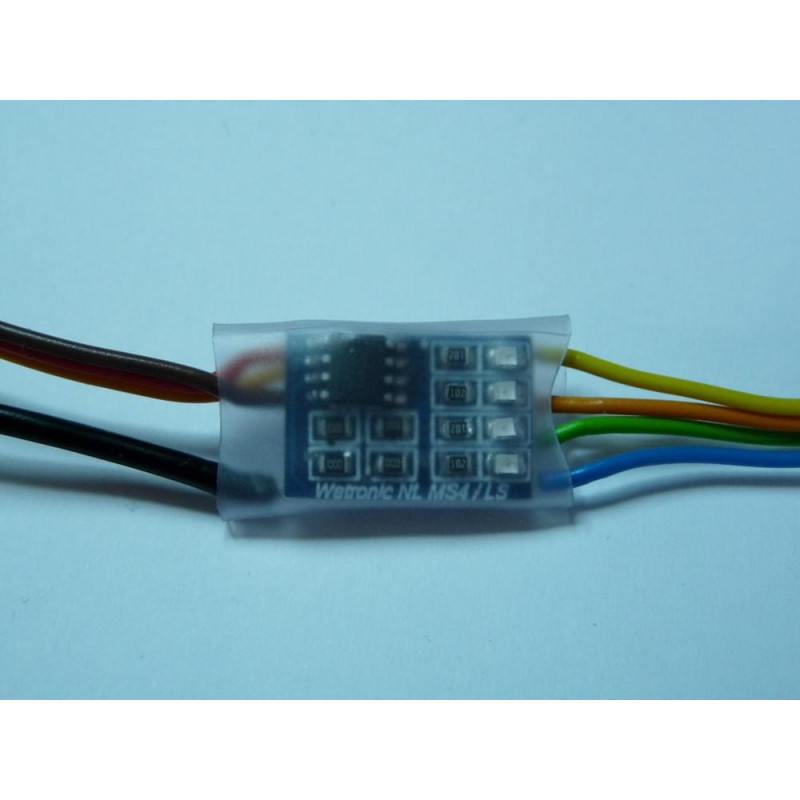

The MS4 decoder works on almost any RC transmtter.
But for the best usage we advise to use the MS4 encoder that suits with this module.
The MS4 makes 4 switching outputs from 1 servo channel.
Each output can drain up to 3A! and that with a dimension of just 18x12x6mm.
We have multiple versions of this module.
This one is the memory setup version. Which can change the output settings from memory to puls configuration.
The setup mode can be accessed by pressing the setup button on the back for about 3 seconds until the leds flash 3 times.
Any channel that you select will light up and stay memory
Any channel that you wont select will stay off and become puls switch.
Setup will close after a few seconds and the led will count up and flash to write down the settings to the memory.
The setup will me stored in the memory and will be there even after you have disconnected the module.
Setup mode can be run as many times as you want.
|Dimensions||18 x 12 x 6mm|
|Nr of channels||4|
|Voltage||5 - 6V|
|Current||4 x 3A max.|
