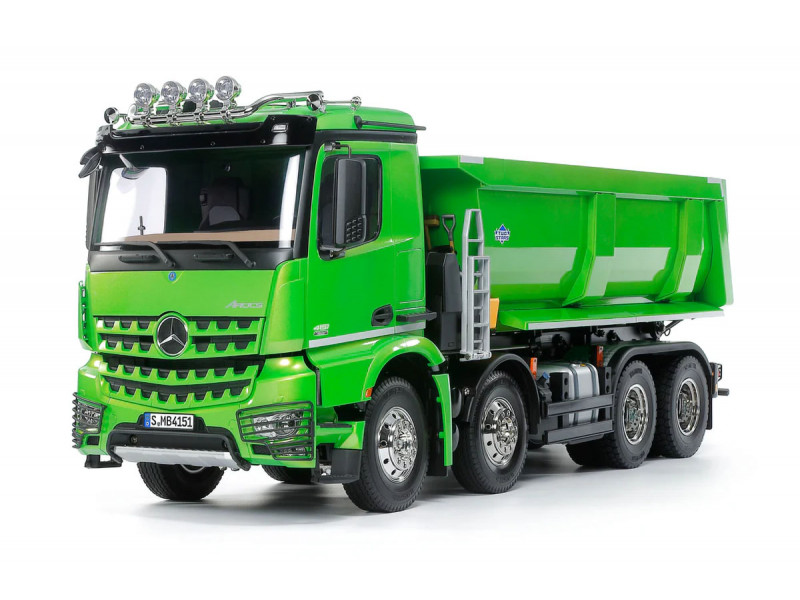

Mercedes-Benz Arocs 8x4 Kipper 1/14 - Kit - Green

The Tamiya Mercedes-Benz Arocs brings an iconic construction vehicle to RC format. This impressive 4-axle tipper truck combines the joy of building a Tamiya model with the distinctive design of the modern Mercedes Arocs for realistic construction and transport tasks. This model is pre-painted in brilliant Candy Green.

Features

• Kit with pre-painted cab and tipper body in TS-52 Candy Lime Green
• Authentic 4-axle Mercedes-Benz Arocs 4151 8x4 replica
• Two driven axles and two steered axles for authentic driving behavior
• 3-speed switchable transmission for realistic performance
• Functional tipper body with sturdy metal frame
• Optional ACU-01 control for automatic tipping function (not included)
• Compatible with MFC-03 multi-function unit for sound and lighting

Overview

The Mercedes-Benz Arocs 8x4 is a real powerhouse for the construction site. This model features a chassis with four axles, where both rear axles are driven via a 3-speed switchable transmission.

The characteristic Arocs design comes fully into its own with the distinctive grille that emphasizes the robust construction site appearance. The cab and tipper body are pre-painted in a striking Candy Lime Green color with Semi-Gloss Black accents and protective coating.

Both front axles are individually controlled via a servo, with each axle having a slightly different steering angle for authentic maneuvering behavior like the real vehicle. This provides realistic steering when navigating tight construction sites.

The functional tipper body is reinforced with a metal frame and can be equipped with the optional ACU-01 spindle drive for automatic tipping function. In combination with the MFC-03 multi-function unit, virtually all sound and light functions of the original can be simulated.

The robust aluminum ladder frame provides the necessary stability for heavy loads while remaining flexible enough for realistic suspension behavior. A tow hitch can be mounted at the rear for pulling trailers.

Specifications

• Scale: 1/14
• Length: 667mm
• Width: 196mm
• Height: 268mm
• Weight: approximately 4kg
• Drivetrain: Dual rear axle with Mighty-Tuned 35T motor
• Transmission: 3-speed switchable
• Chassis: Aluminum ladder frame with 4-axle configuration
• Suspension: Leaf springs with rear dampers and coil springs
• Body: Pre-painted ABS in Candy Lime Green
• Steering: Both front axles steerable with different angles
• Compatibility: MFC-03 multi-function unit, ACU-01 tipping drive

Conclusion

Perfect for hobbyists looking for an authentic, functional truck with professional build quality. The Mercedes-Benz Arocs 4151 8x4 combines Tamiya's proven technology with modern Mercedes design for an impressive RC construction site experience.
