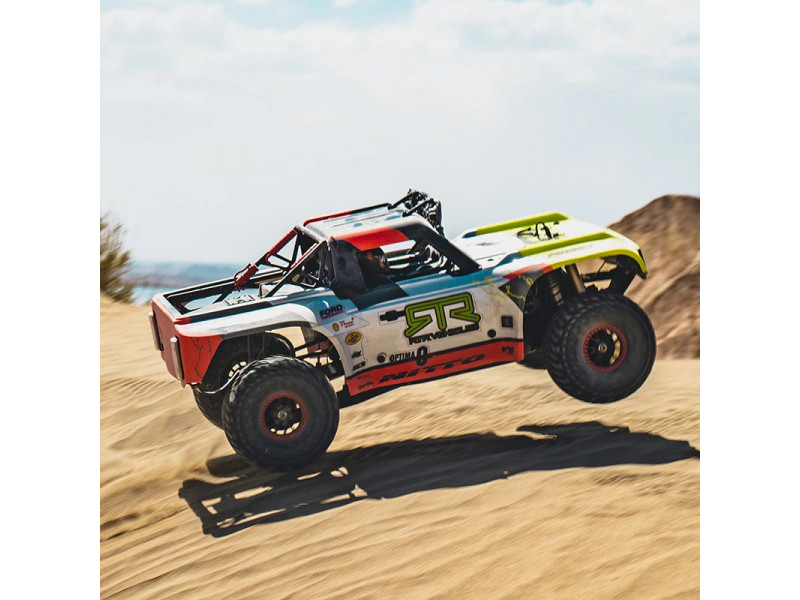

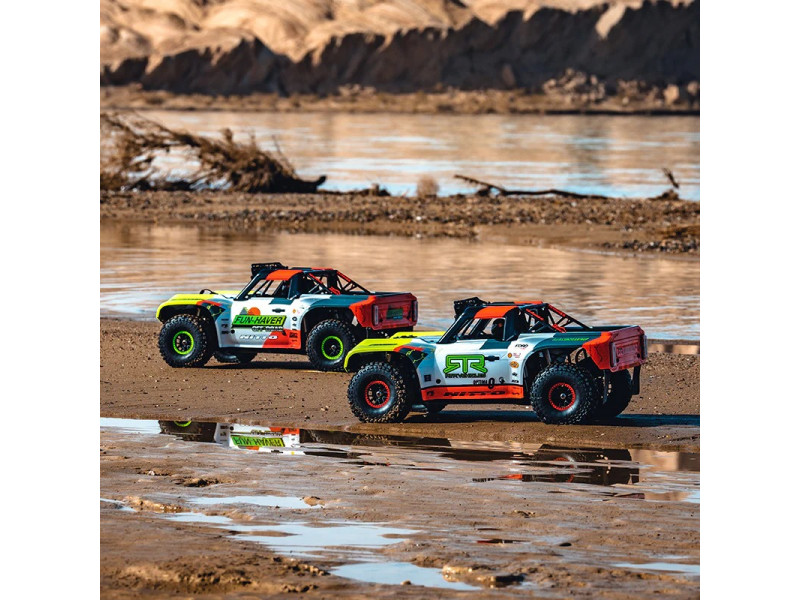

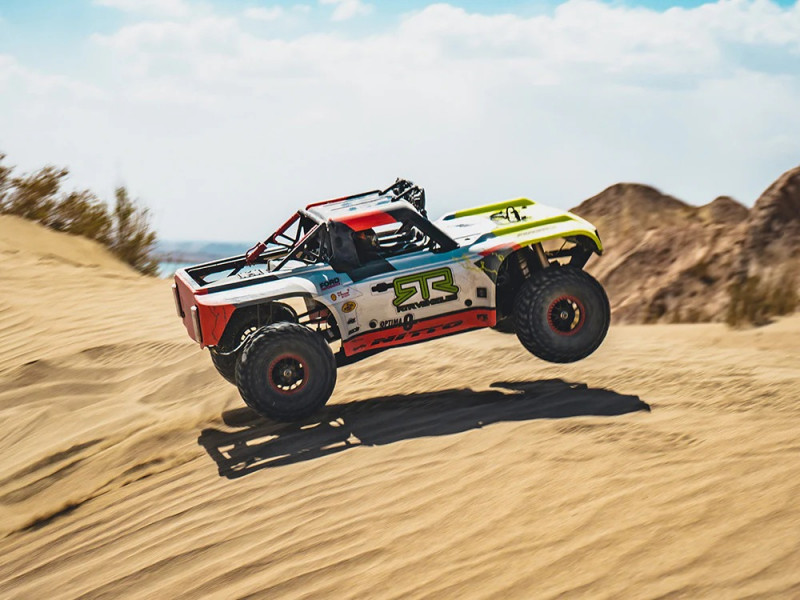

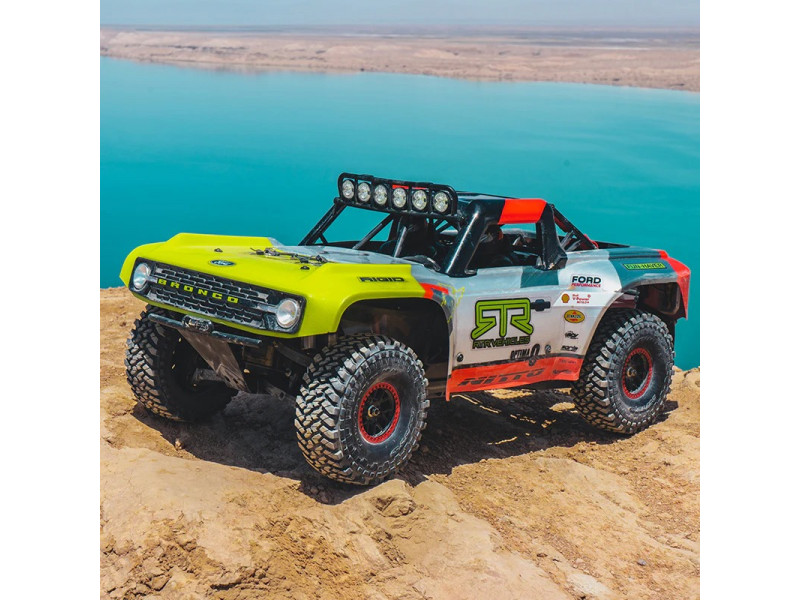

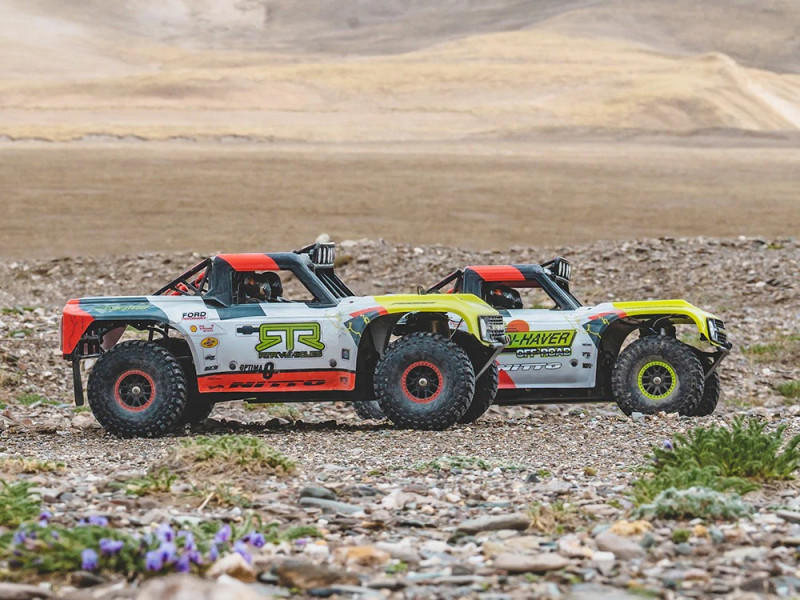

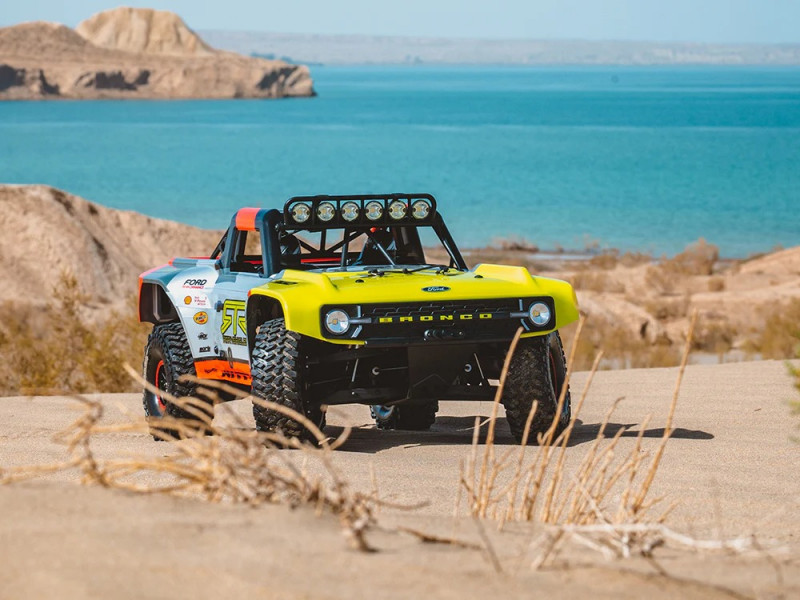

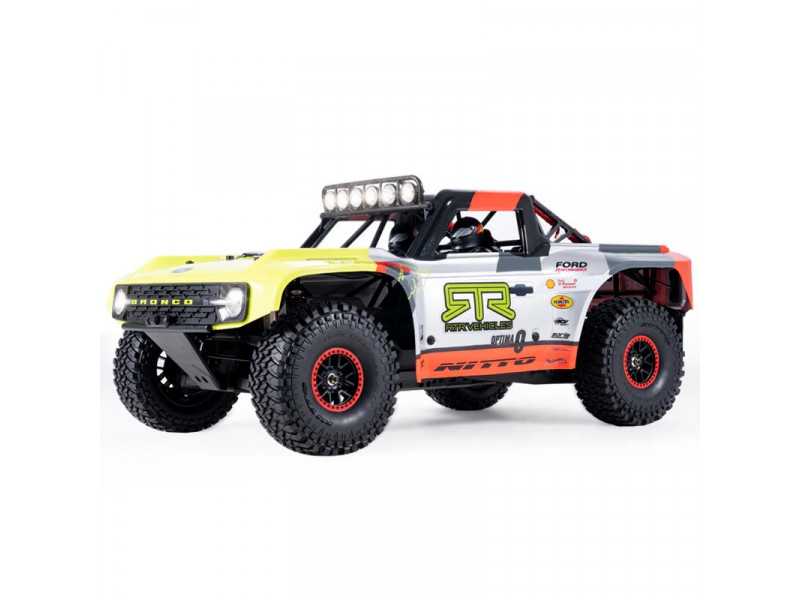

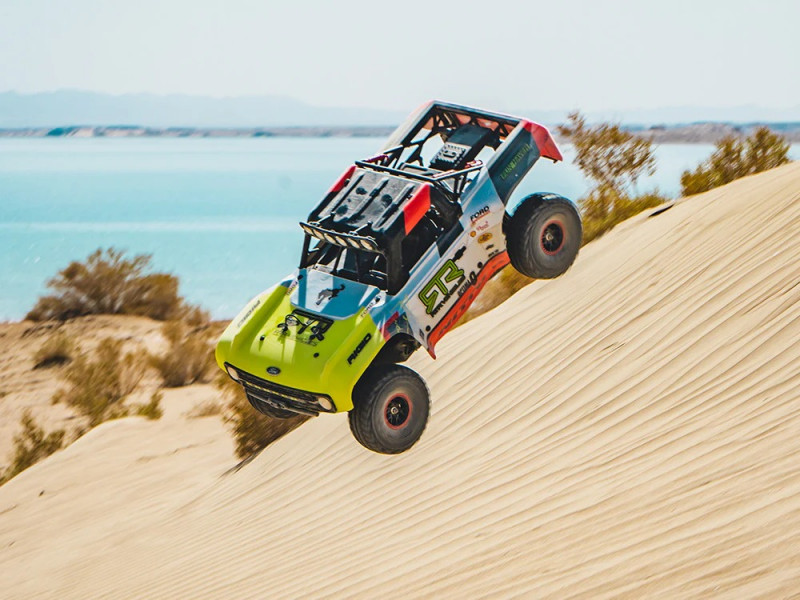

Ford Bronco 1/7 Brushless Ultra4 Truck RTR - Livery A

The FMS Ford Bronco brings the extreme performance of Ultra4 racing to RC format. This officially licensed by Ford and RTR Vehicles short course truck combines authentic styling with modern RC technology for fantastic off-road performance.

Features

• Officially licensed by Ford and RTR Vehicles with authentic race livery
• Hobbywing 4274 1600KV brushless motor with 150A waterproof ESC
• Top speed up to 80 km/h with 6S LiPo battery

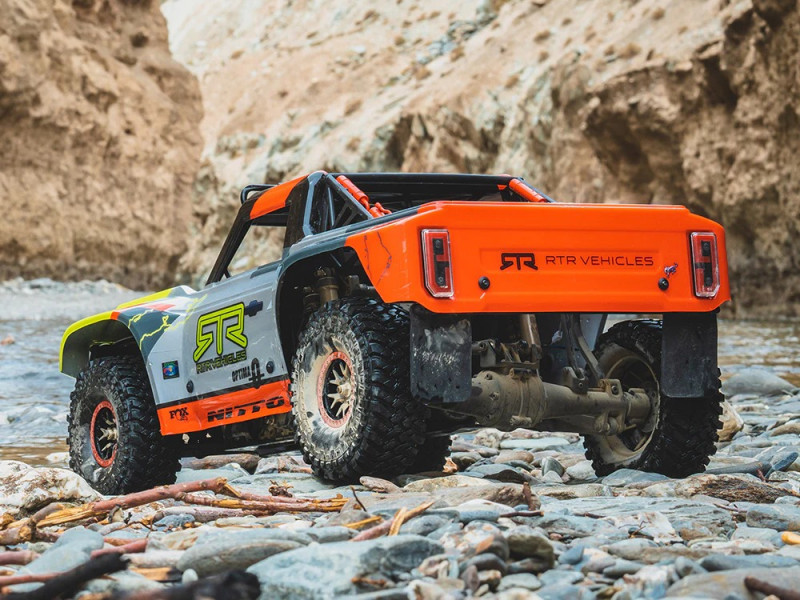

• Independent front suspension and solid rear axle like the real Ultra4 racer
• Aluminum chassis, shocks, motor mount, diff case, shock tower and much more!
• Front, rear and center diff with metal gears

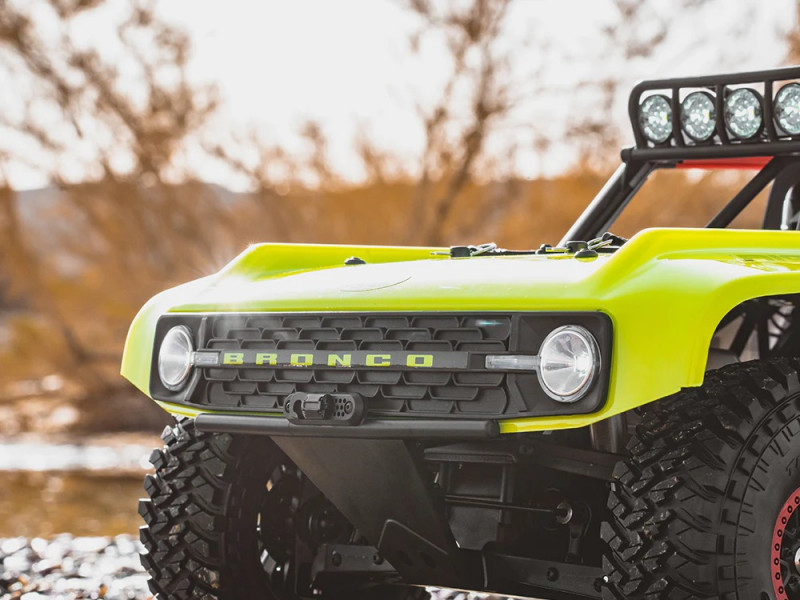

• Extensive LED lighting for racing in the dark
• Equipped with gyroscope for improved stability at high speeds

Overview

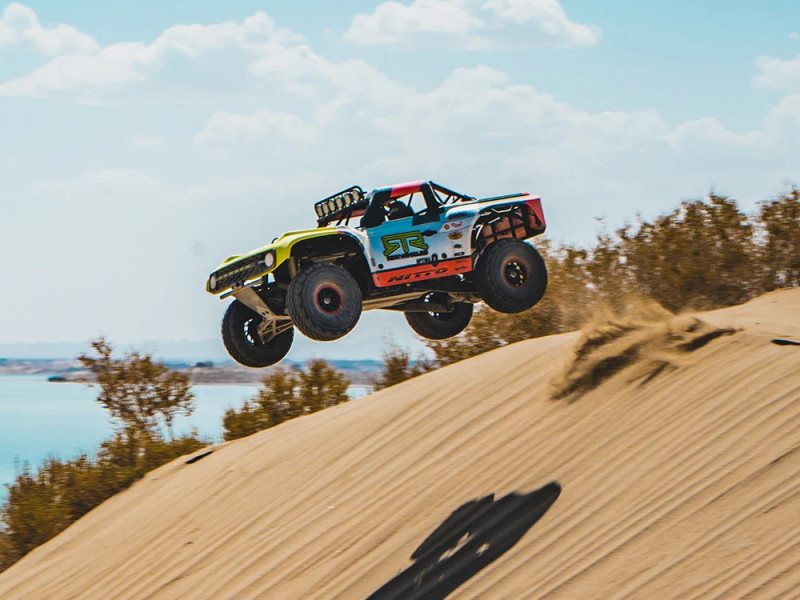

The FMS Ford Bronco is an exact replica of the full-size Ultra4 race truck driven by champions Loren Healy and Vaughn Gittin Jr. The model features the same performance-oriented setup as its big brother, with independent front suspension and a solid rear axle for optimal traction and control over the roughest terrain.

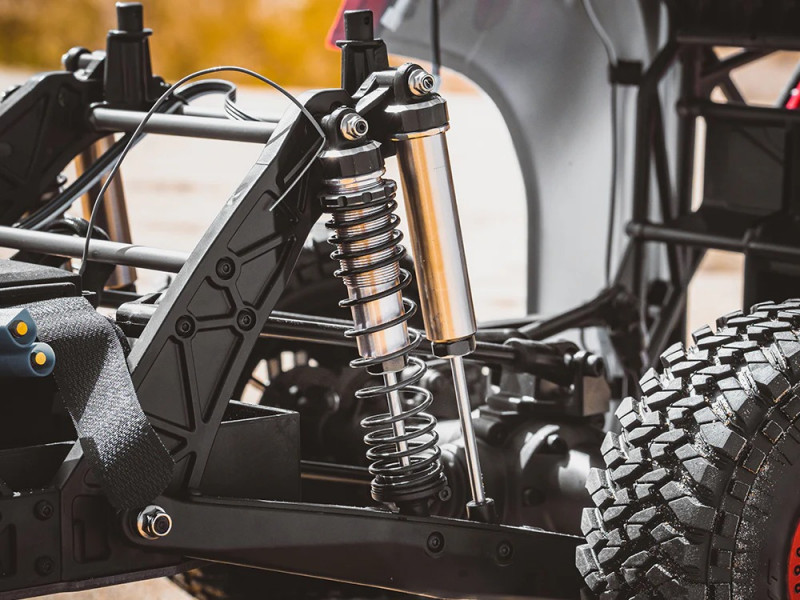

The chassis is fully manufactured from aluminum with metal components at all critical points. Eight aluminum shock absorbers provide smooth articulation over obstacles, while the three oil-filled metal differentials ensure balanced power distribution.

The Hobbywing brushless drivetrain delivers explosive performance with precise throttle response. With a 6S LiPo battery the truck reaches speeds up to 80 km/h, while a 4S setup offers more control for technical driving. The 60KG metal steering servo provides fast, accurate steering even under extreme load.

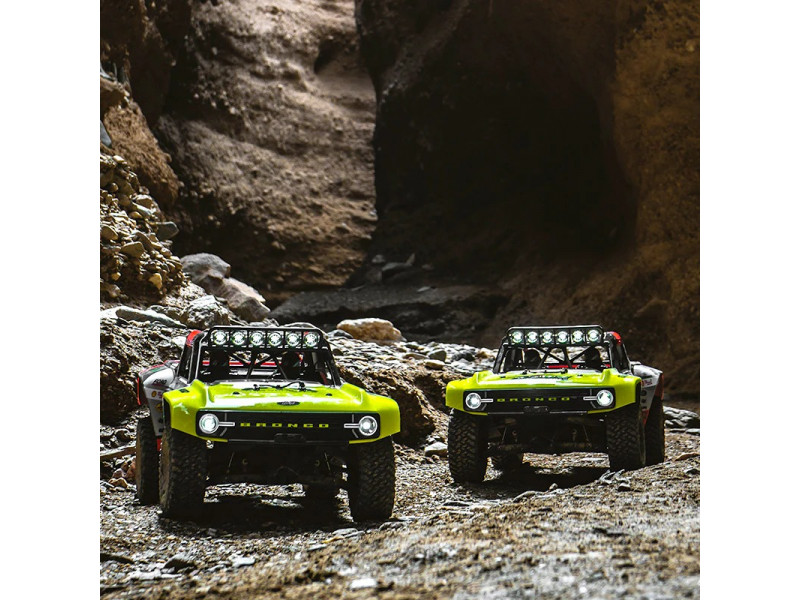

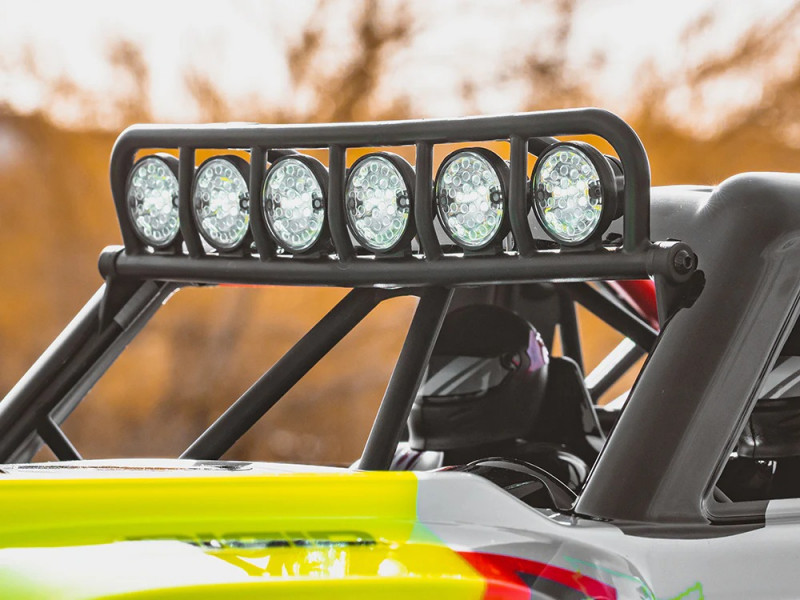

The lighting system with powerful headlights, spotlights and tail lights enables driving at dusk. The electronics are waterproof and covered with a transparent dust cover to protect the system against the elements.

Specifications

• Scale: 1/7
• Length: 650mm
• Width: 350mm
• Height: 273mm
• Wheelbase: 425mm
• Track width: 290mm
• Ground clearance: 45mm
• Weight: 7.5kg
• Motor: Hobbywing 4274 1600KV brushless

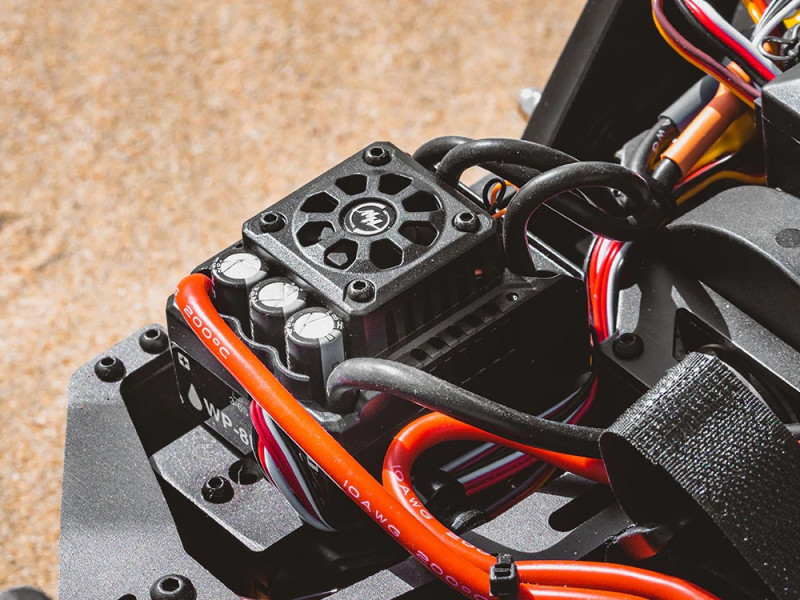

• ESC: Hobbywing 150A waterproof
• Servo: 60KG high-torque metal gears
• Shocks: 8x aluminum oil-filled
• Tires: Nitto Trail Grappler (146 x 55mm)
• Drivetrain: 4WD with front, center and rear differential

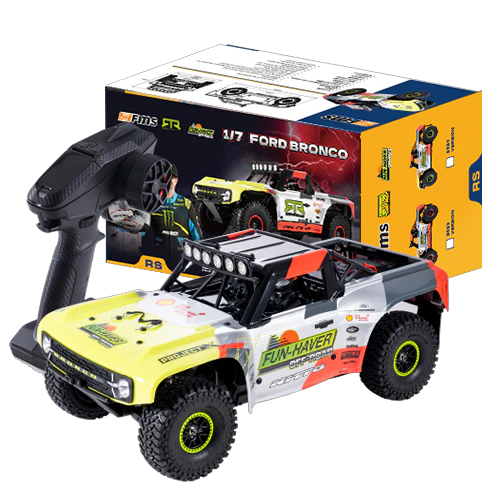

• Transmitter: X5P7-350 with gyro function, 200 meter range
• Receiver: P6DCG
• Recommended battery: 4-6S LiPo with EC5 connector
• Max battery dimensions: 181 x 47.5 x 54mm

Conclusion

An impressive desert truck for experienced RC hobbyists looking for authentic Ultra4 performance. The FMS Ford Bronco combines modern RC technology with extremely strong construction for unparalleled off-road adventures.
