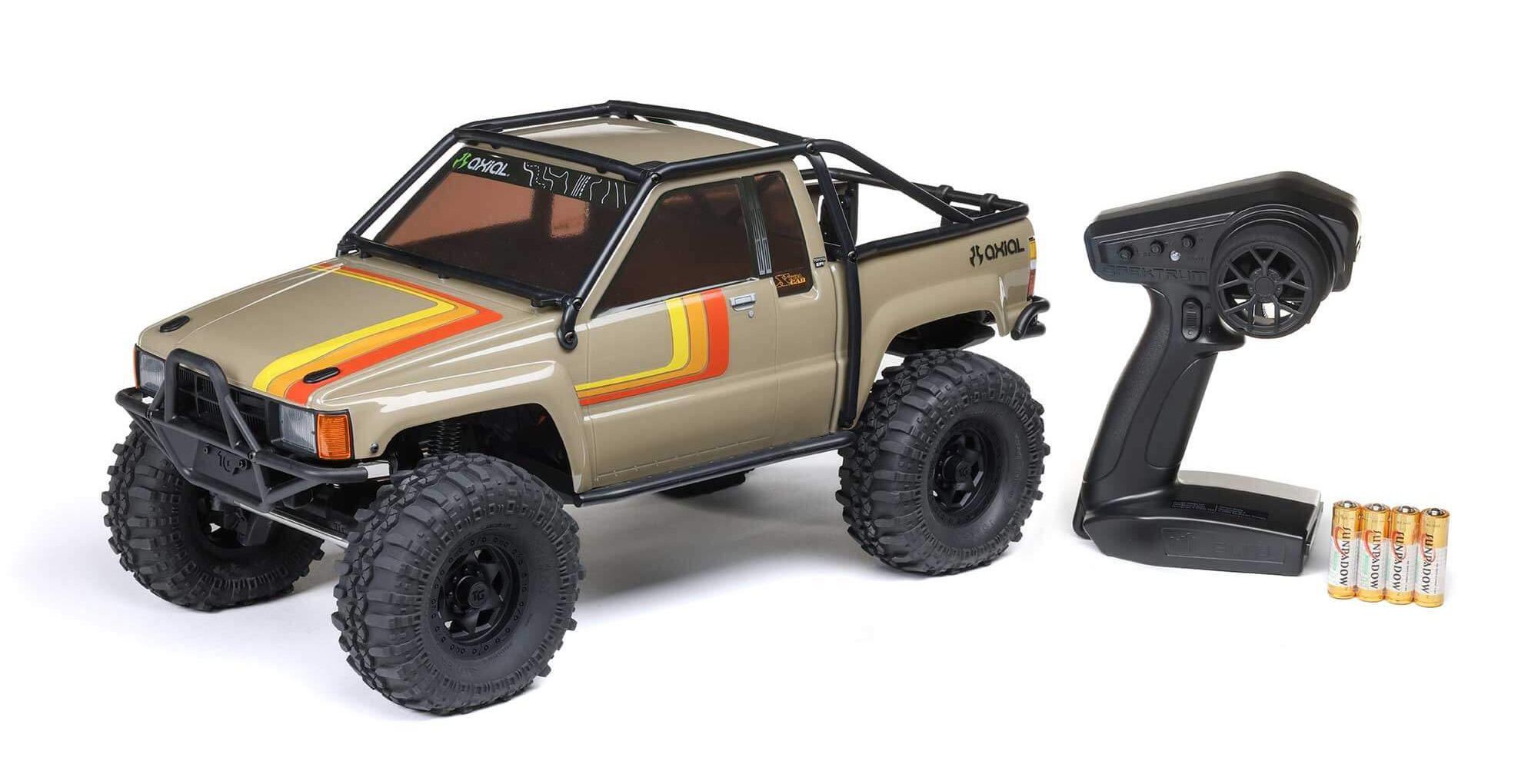

SCX10 III Toyota Hilux SR5 1987 1/10 RTR - Brown

The Axial SCX10 III Toyota Hilux SR5 (1987) is a crawler with an officially licensed Toyota SR5 Xtra Cab body, fitted with plenty of pre-installed off-road details. You get a ready-to-run rig with portal axles, a DIG function and lighting — just add a battery and charger.

Features

• Officially licensed 1987 Toyota SR5 Xtra Cab body
• Proven SCX10 III platform with a steel chassis for added rigidity
• Clipless body mounting for a clean look and quick access to the electronics
• Portal axles increase ground clearance
• Metal transmission with DIG function for a tighter turning radius
• Interco Super Swamper tyres for grip on rocks and loose terrain
• Adjustable oil-filled aluminium shocks
• Optimised crawler suspension: 3-link front and 4-link rear
• Waterproof steering servo with metal gears

Overview

The Axial Toyota Hilux is all about combining scale realism with trail performance. The SR5 Xtra Cab body is officially licensed and comes with many off-road details already installed, so it looks complete straight out of the box without needing extra scale accessories. Thanks to the clipless system, you can remove the body quickly, which is useful for battery changes and maintenance.

Under the body sits the SCX10 III chassis with a strong steel ladder frame. It’s rigid enough to keep the suspension working accurately, which you’ll notice most when crawling slowly over larger obstacles. The Trail-Gear AR45P portal axles add extra clearance at the differentials, helping you avoid getting hung up on ledges and rocks.

The LCXU transmission is a single-speed unit with a DIG function. With DIG, you can lock the rear wheels on command while the front wheels keep turning. This makes very tight turns possible, especially when you have plenty of grip from beadlock wheels and soft tyres.

The drivetrain is equipped with waterproof electronics. That makes the model suitable for wet grass, mud and puddles, as long as you clean and dry it properly afterwards. All you need to choose is a 2S or 3S LiPo with an IC3 connector (or an adapter) and a compatible charger.

Specifications

• Scale: 1/10
• Length: 475 mm
• Width: 234 mm
• Height: 234 mm
• Wheelbase: 312 mm
• Weight: approx. 3080 g
• Drivetrain: 4WD
• Motor: Axial 35T brushed
• ESC: Spektrum 40A waterproof ESC
• Transmitter: Spektrum SLT3 2.4GHz
• Receiver: Spektrum SR515 DSMR 5-channel
• Servo: waterproof, metal gears
• Transmission: LCXU 1-speed with DIG function
• Axles: Trail-Gear AR45P portal axles
• Shocks: oil-filled, aluminium, adjustable
• Wheels: Trail-Gear Creeper Lock beadlock (12 mm hex)
• Tyres: Interco Super Swamper
• Battery: 2S/3S LiPo (not included)
• Connector: IC3

Still needed

• 2S or 3S LiPo battery with IC3 connector (or suitable adapter)
• Compatible LiPo charger

Conclusion

Want a 1/10 crawler that looks scale-accurate and is technically capable on the trail? The Axial SCX10 III Toyota SR5 combines portal axles, a DIG transmission and waterproof electronics with a clean clipless body system and licensed Trail-Gear/Interco details.
